Our company start from manufacturing hardened and tempered steel strip to extend band saw blade production. Just as we have strong experience on steel strip production, so that we do know that the quality of steel strip on the straightness  and flatness which are more important for making band saw blade.

At the same time,we are keeping learn from our customer and updating our facilities near to advanced equipment and technique to ensure excellent quality to meet the customer requested

Wide band saw blade for wood cutting

Thickness : 0.9mm---1.83mm

Width: 50mm---260mm

Teeth patch: 19mm, 22mm

Narrow band saw blade for wood and non-ferrous metal (aluminium and brass)

Thickness : 0.36mm---0.9mm

Width: 6mm------50mm

Teeth per inch: 3/4/6/8/10/14/24

Bimetal  M42 band saw blade

27X0.9 MM        34*1.1MM            41*1.3MM

54*1.6MM          67*1.6MM           1.6*80MM

High carbon alloy steel band saw blade

Cs67,cs75,c75cr1,sk5,sk4,bimetal(M42)

Application to cut

Soft and hard wood

Brass

Aluminium

Graphite

Glass fiber

Rubber

Frozen meat and bone

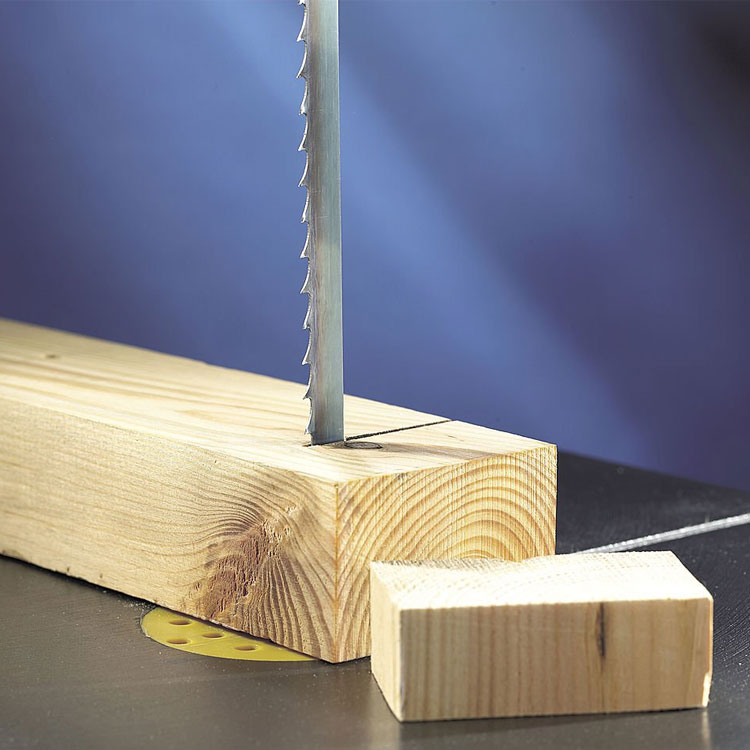

Band saw blade for wood ( veneer,plywood,timber...)

Using grade cs67,cs70,cs75,c75cr1,51crv4,60si2mn, 420J2,sk4,sk5 and material c75s add 2% Ni.

Toothed, setting, hardening and lenght cutting welding as the customer requested.

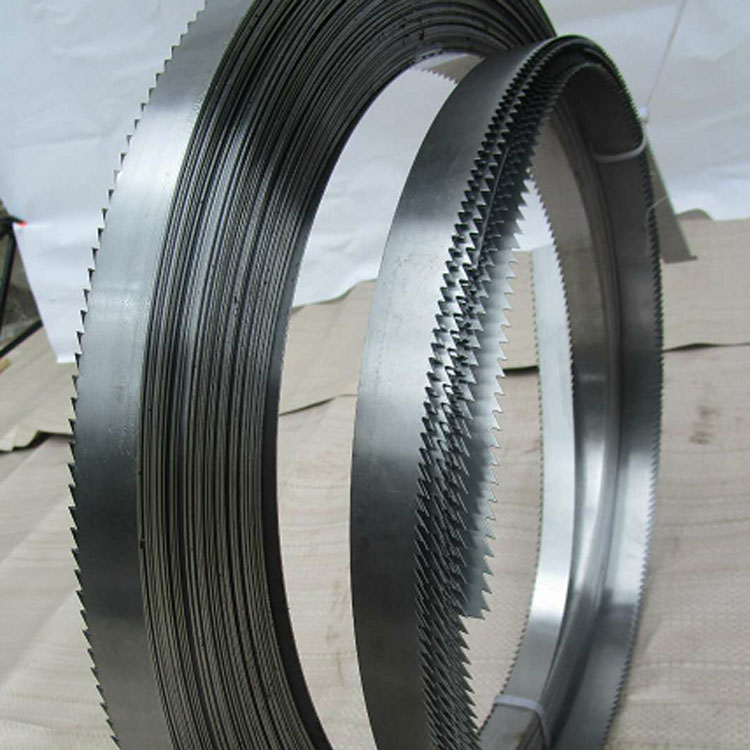

Normally toothed rolls in coil 100m , i.d. 400mm, non setting and hardening

Width from 6mm to 50mm for narrow saws cutting, 60mm to 260mm for wide wood cutting.

Patches available:6,8,10,12,14,15,19,22,25,30mm as standards tensile strength 1450N/mm2, blade hardeness 42-46hrc.

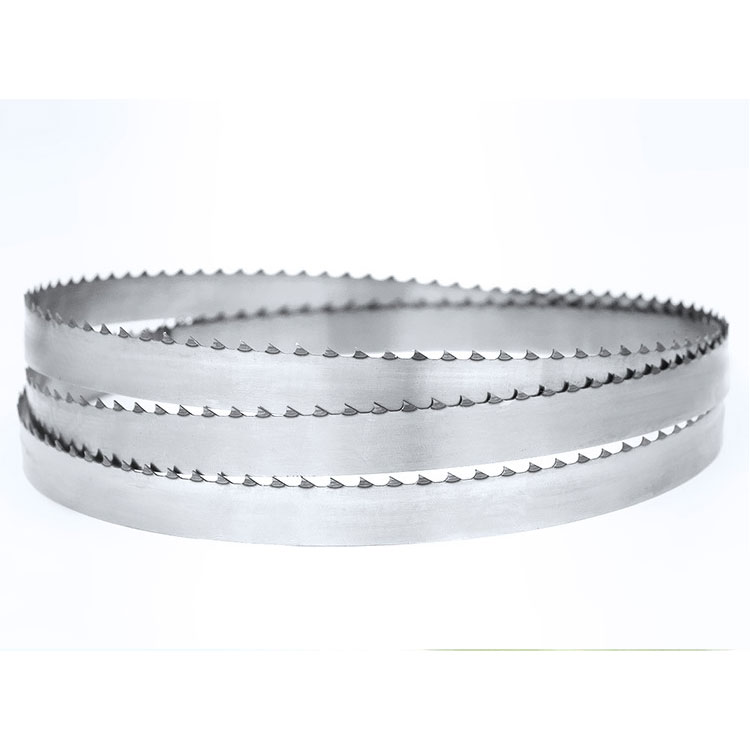

Band saw blade for frozen meat and non-ferous metal cutting.

Using grade cs67,cs70,cs75,c75cr1,51crv4,60si2mn, 420J2,sk4,sk5 and material cs75 add 2% Ni.

Toothed, setting, hardening and lenght cutting welding as the customer requested.

Normally thickness of .022”,.023”,.025”(0.5mm,0.56mm,0.6mm)

Width is 1/2”,5/8”,3/4”(13mm, 16mm,19mm)

Teeth patch: 2.5/3/4/6tpi

Packing steel strip

Packing strapping

Tempered steel strip for packing

Painted packing steel strip

1. Pack for cotton jute wool and steel industry (steel tube, bar and coils) and plywood ,brick heavy weight products.

2. Tensile strength 930MPA above

3. Elongation over 6%

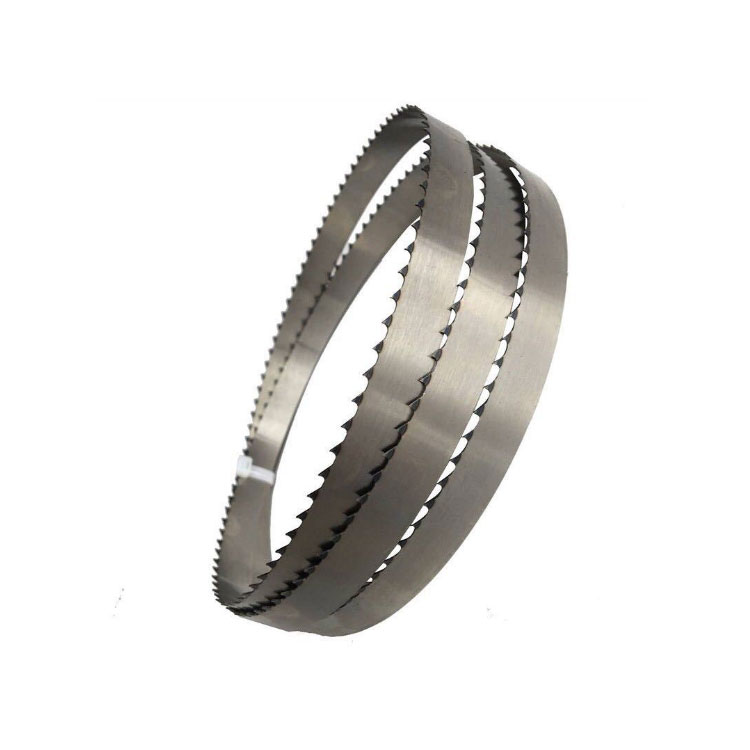

Wood cutting band saw blade with high carbon steel with high tensile strength.

Narrow and wide band saw blade for wood cutting.

Thickness from 0.4mm to 1.83mm

Width from 6mm to 260mm.

Teeth shape with NV, MW, and Hook

Teeth pitch from 3t to 32t

Grade c67s, c75s, c75cr1, sk4,sk5 high carbon spring and alloy steel for band saw blades woodcutting.

Usually size of thickness from 0.4mm to 1.83mm, width from 4mm to 260mm

Blade hardness from 42hrc -46hrc

Edge: rounded( shared )

Surface: polished white or tempered blue.
